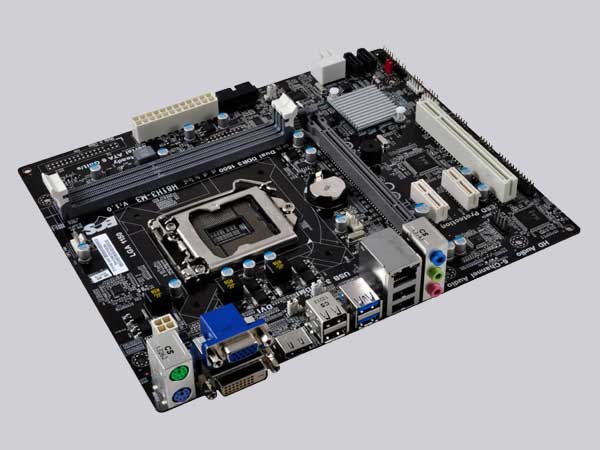

SALE Motherboard H81 MIXED BRANDS

CPU Supports New 4th & 4th gen Intel® Core™ family, Pentium, Celeron series processors in LGA1150 socket
DMI 5.0GT/s
3 Phase Thermal Design Power
VRD 12.5
100% Solid capacitor design
CHIPSET
Intel® H81 Express Chipset
GRAPHICS
Supports DirectX® 11 .1
Supports HDMI 1.4a & Premium Audio

MEMORY
Dual-channel DDR3 Memory architecture
Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*


EXPANSION SLOT
1 X PCI Express X16 Gen 2.0 slot(s)
2 X PCI Express X 1 Gen 2.0slot(s)
1 X PCI slot(s)

STORAGE
Support by H81 Express Chipset
2 X Serial ATAIII 6Gb/s
2 X Serial ATAII 3Gb/s

AUDIO
6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D™, A3D™, I3DL2

LAN
Realtek 8111G Gigabit Fast Ethernet Controller
Wake-On-LAN

USB
Support by H81 Express Chipset
2 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
Back Panel 2 port(s)
8 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 4 port(s)

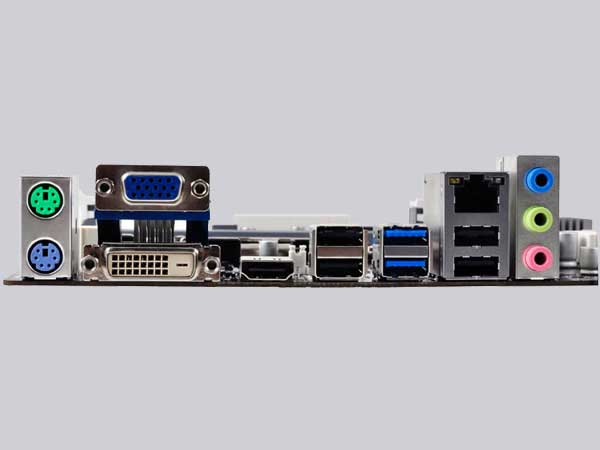

REAR PANEL I/O
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X DVI-I port(s)
1 X D-Sub (VGA) port(s)
2 X USB 3.2 Gen 1x1 port(s)
4 X USB2.0 port(s)

CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X Front panel audio header
1 X Speaker header
1 X USB 3.2 Gen 1x1 header (optional)
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 4 USB ports
1 X S/PDIF out header
2 X SATA III 6Gb/s connector(s)
2 X SATA II 3Gb/s connector(s)
2 X Serial port header (COM)
1 X Parallel port header (LPT)
1 X TPM header
1 X ME_UNLOCK header

SYSTEM BIOS
AMI BIOS with 64 MB SPI Flash ROM
Supports M.I.B III Utility
Supports ACPI 5.0 & DMI
F7 hot key for boot up devices option
Support ECS EZ BIOS
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS

FORM FACTOR
mATX Form Factor
244 x 200mm

3 Phase Power Design
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
    language environment
ECS MIB III - A friendly interface for overclocking
2 COM designed for various IPC applications
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Intel® 22nm 4th generation Multi-Core CPU support
Intel ® VRD 12.5 Ready
Supports DirectX® 11.1 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Free Bundle: CyberLink Media Suite
